Product Overview
Description

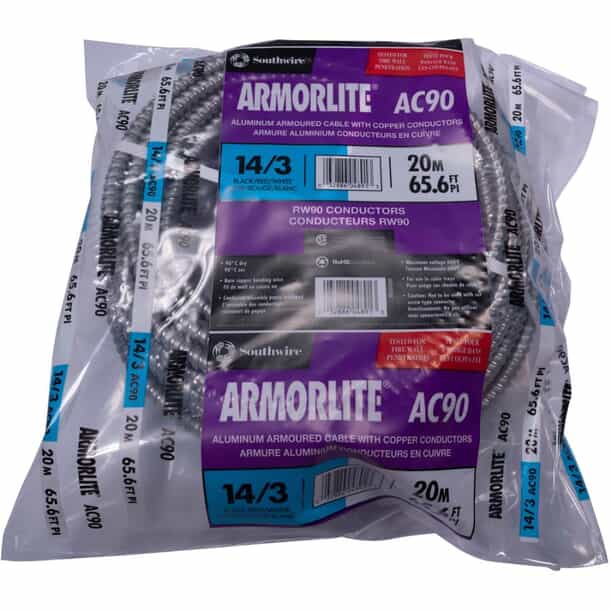

Southwire AC90 armoured electrical cable is manufactured using copper conductors with PVC/nylon insulation and a bare copper ground wire wrapped with bare interlocked aluminum armour. Used in dry locations only, for open and concealed electrical wiring as well as cable troughs and ventilated flexible cableways.
- 14 AWG AC90 includes 3 copper wires and one ground wire
- Minimum recommended installation temperature is minus 10°C. CSA cold temperature rating is minus 25°C
- Maximum allowable conductor temperature is 90°C
- Maximum voltage rating for all intended applications is 600V
Our Return Policy
If you are not completely satisfied with your purchase, in most cases, you can return it for a refund within 90 days.
Lumber, Building Materials, Furniture and Major Appliances return policies are subject to your local store.
Learn MoreSpecifications
Brand | SOUTHWIRE |
---|---|
Model | 55222720 |
Assembled Product Length | 12.5" |
Assembled Product Width | 12.5" |
Assembled Product Height | 3" |
Product Weight | 7.3 LB |
Package Weight | 7.02 lbs |
Package Length | 12.90 in |
Package Width | 13.00 in |
Package Height | 4.50 in |
