Here's How to Make a Wood Block Headboard

Make a Statement with a DIY Wood Block Headboard

Looking for an easy DIY project that only takes a few hours to complete? This DIY headboard is versatile and can be adapted to fit any room style or size.

What You’ll Need


Steps

Step01

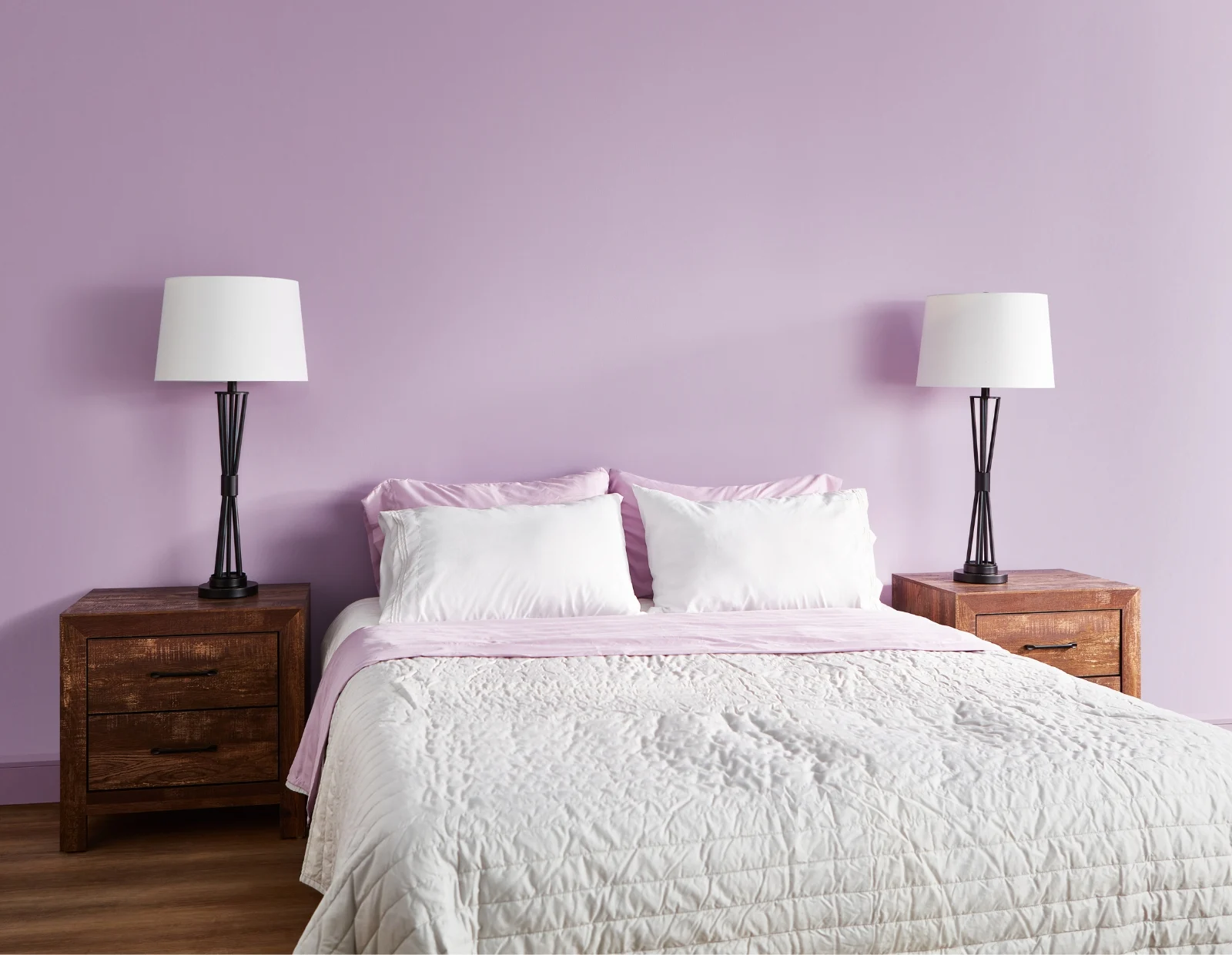

Step #1: Determine Size and Layout

The first step in creating your wood block headboard is to determine the width and height that best suits your space. Next, identify the number of horizontal rows in your mosaic.

Tape measure icon


Step02

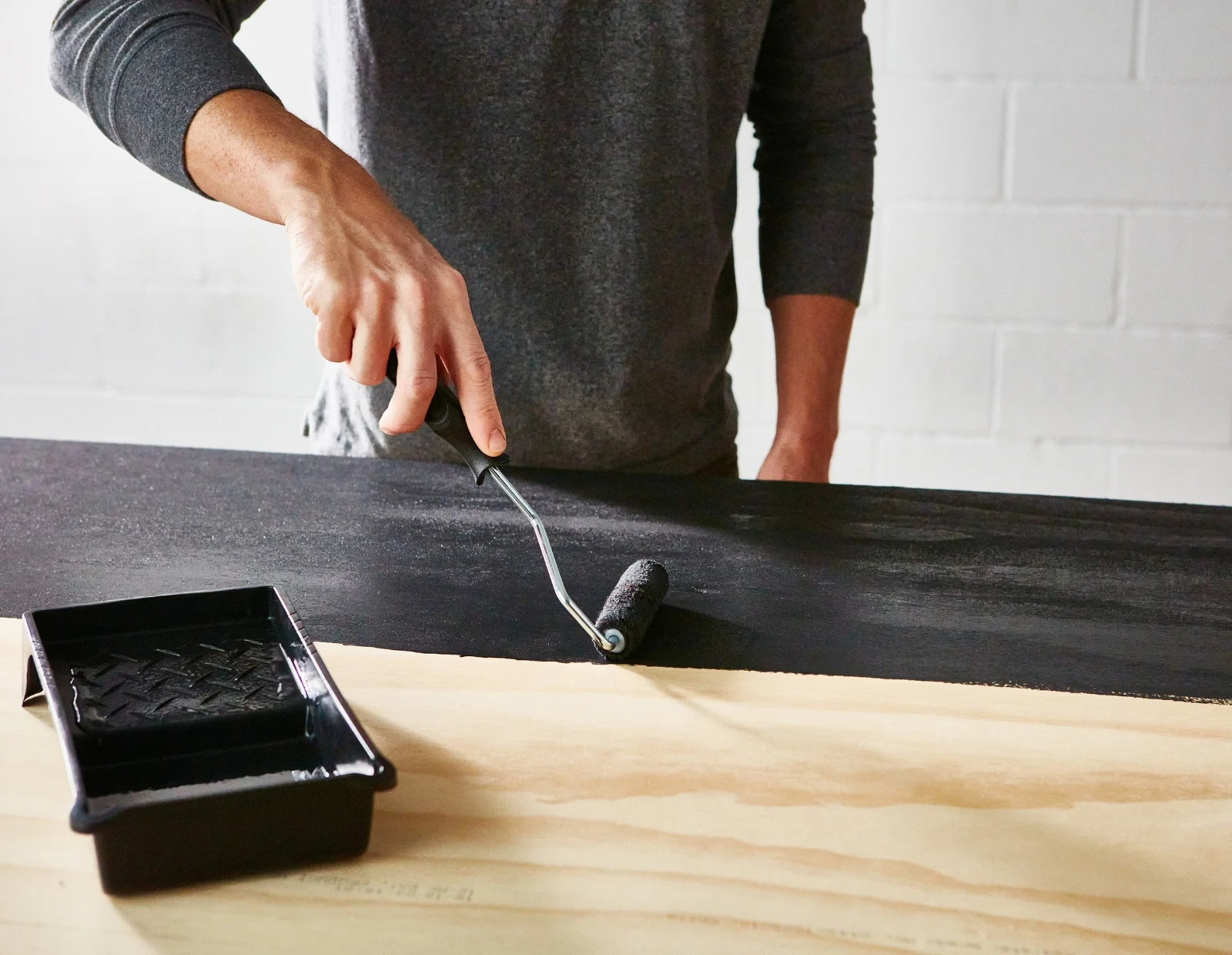

Step #2: Prepare the Plywood Base

Once you have the dimensions figured out, cut a piece of plywood to fit inside the frame. This will serve as the base for your wood block mosaic. Paint the plywood black to ensure any gaps or imperfections in the blocks are hidden.

trim paint icon


Step03

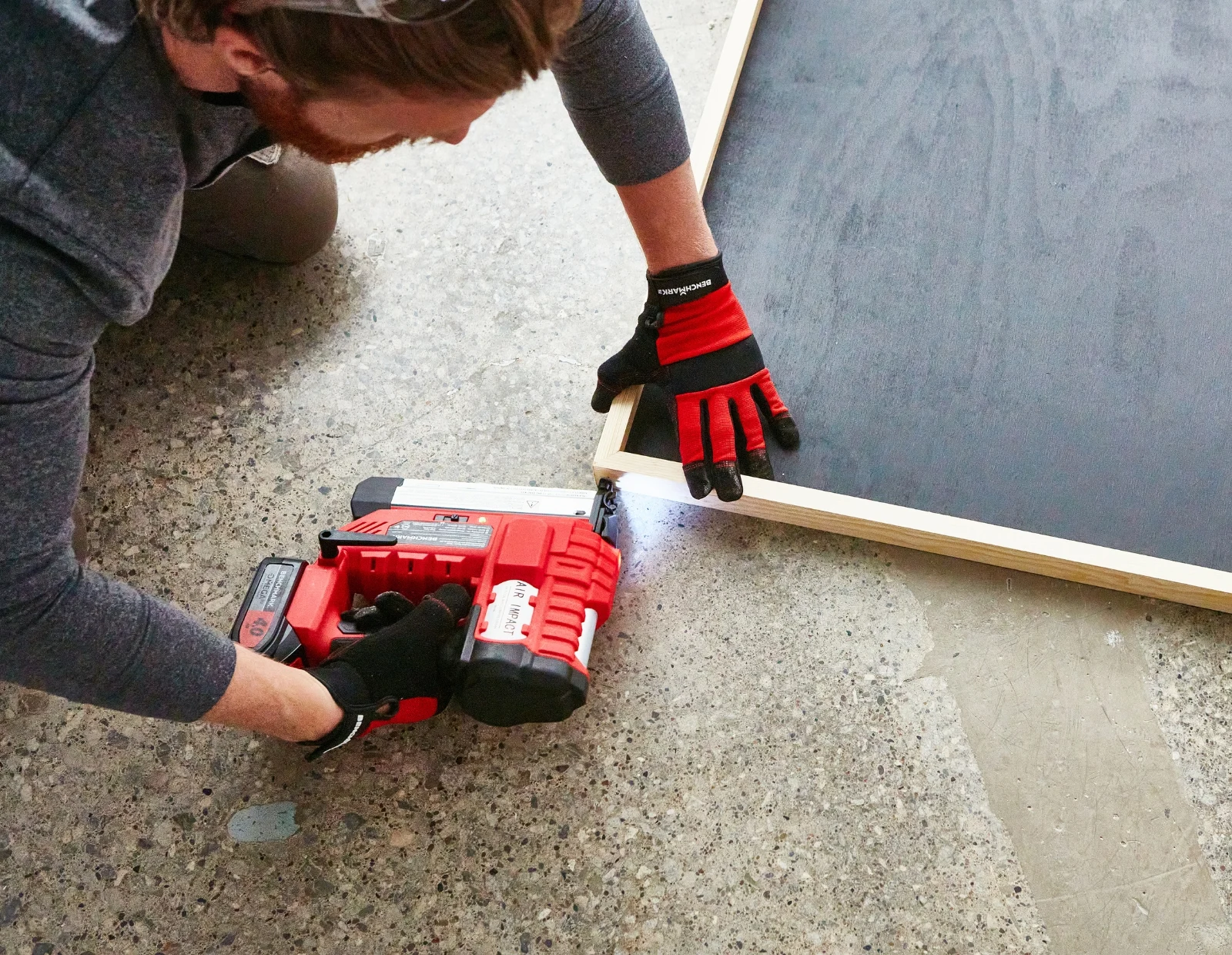

Step #3: Construct the Frame

Next, cut and attach a 1” x 2” frame to the plywood base. Mitre cut the corners for a polished finish. Use glue and a brad nailer to securely attach the frame using 1 ¼" nails.

Power Tools


Step04

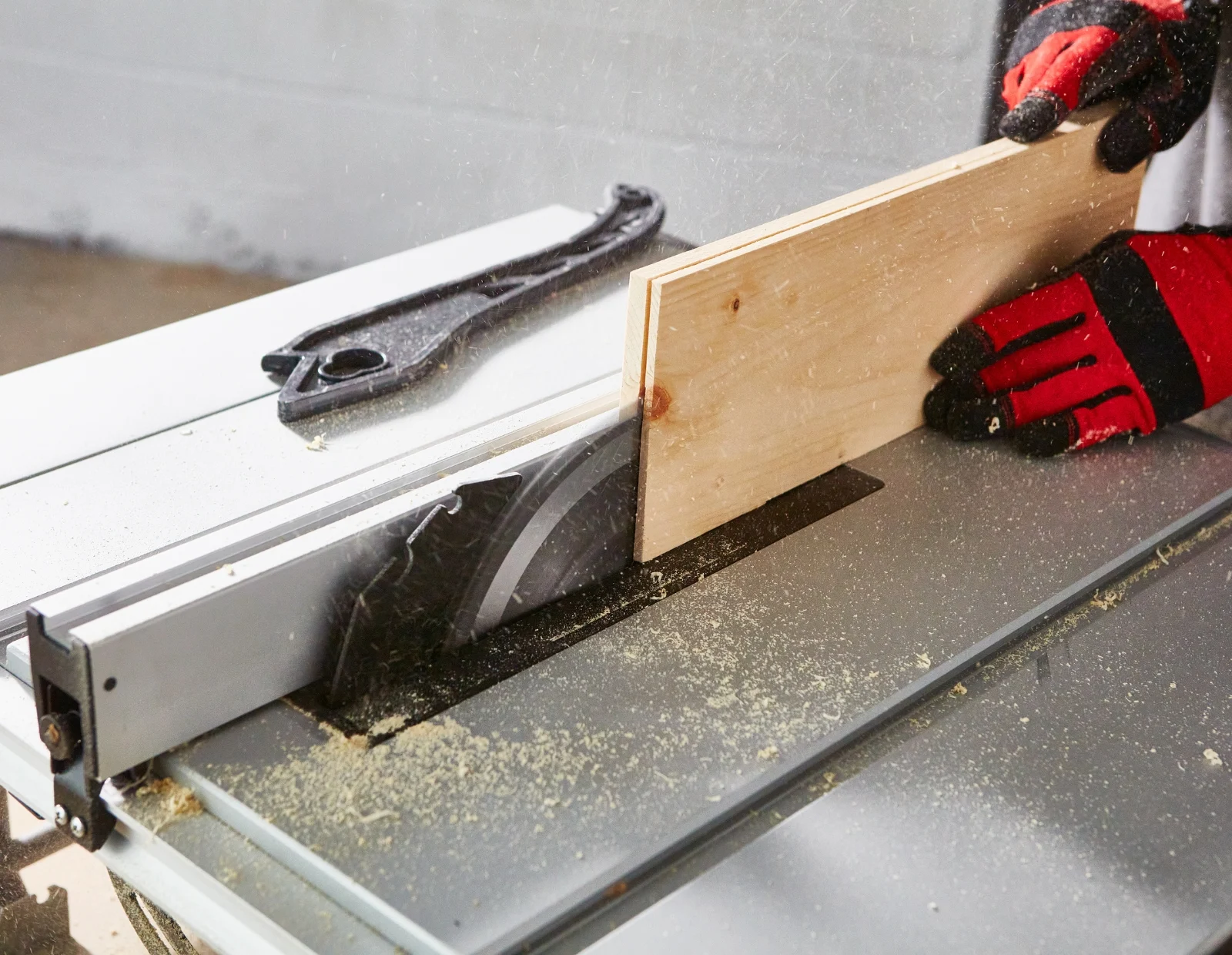

Step #4: Prepare and Sand the Boards

Gather your 1” x 6” x 8” boards. Keep 2 of the boards at the ¾" thickness. Cut the remaining boards to the thickness of ½" and ¼". Since the boards are 6" deep, and our blade height is just over 3", you will need to pass the boards through the table saw twice to make your cuts.

Tip: You should have multiple boards of varying thicknesses to create a unique texture.

Power Tools


Step05

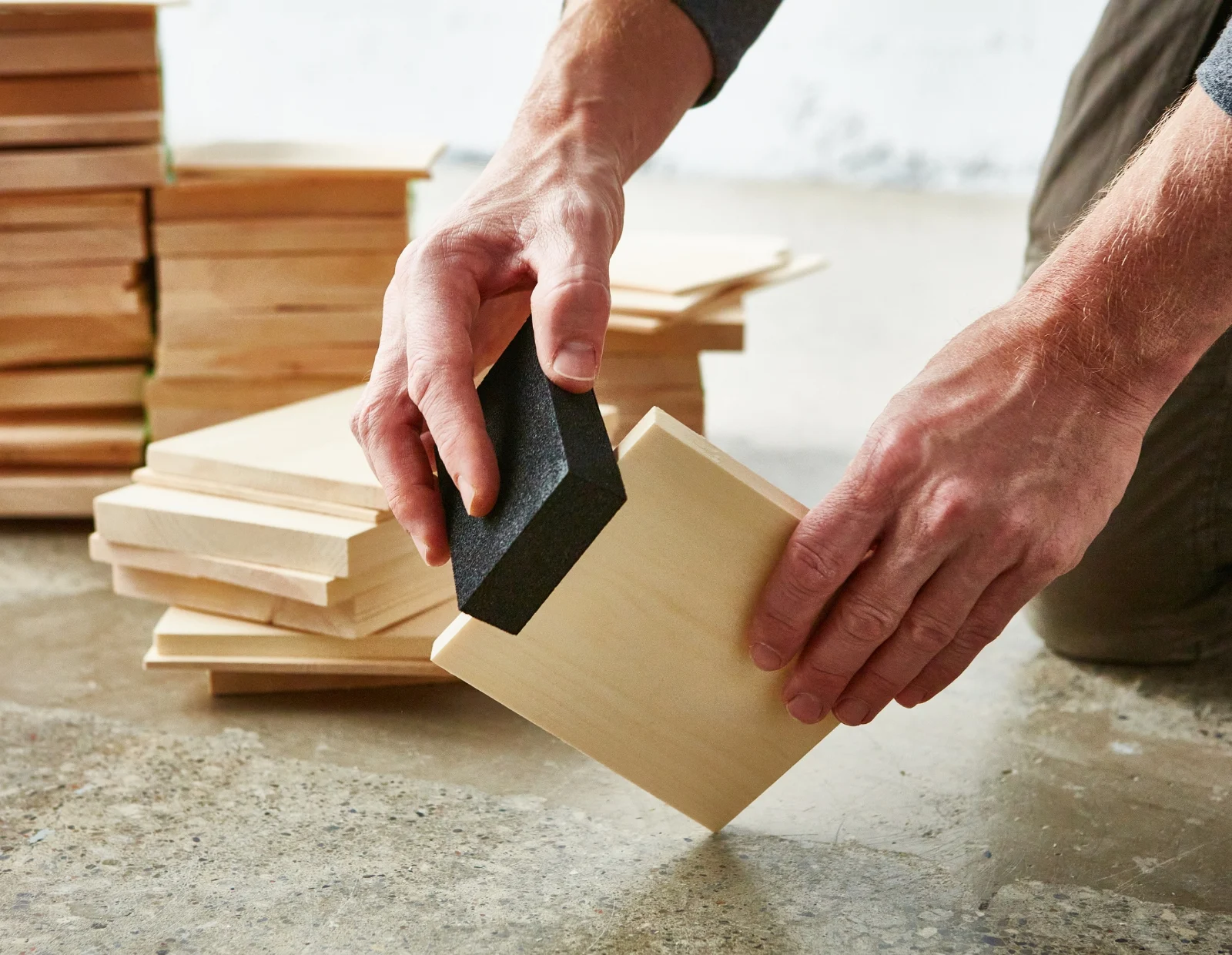

Step #5: Cut Boards to Varying Lengths

Tip: Before cutting the boards to varying lengths, use a palm sander to sand the face and 2 sides of all boards. Cut the boards to the pre-determined lengths to fit inside your frame (5 ½", 8" and 11"), and manually sand the rough-cut edges of each block.

Sander icon


Step06

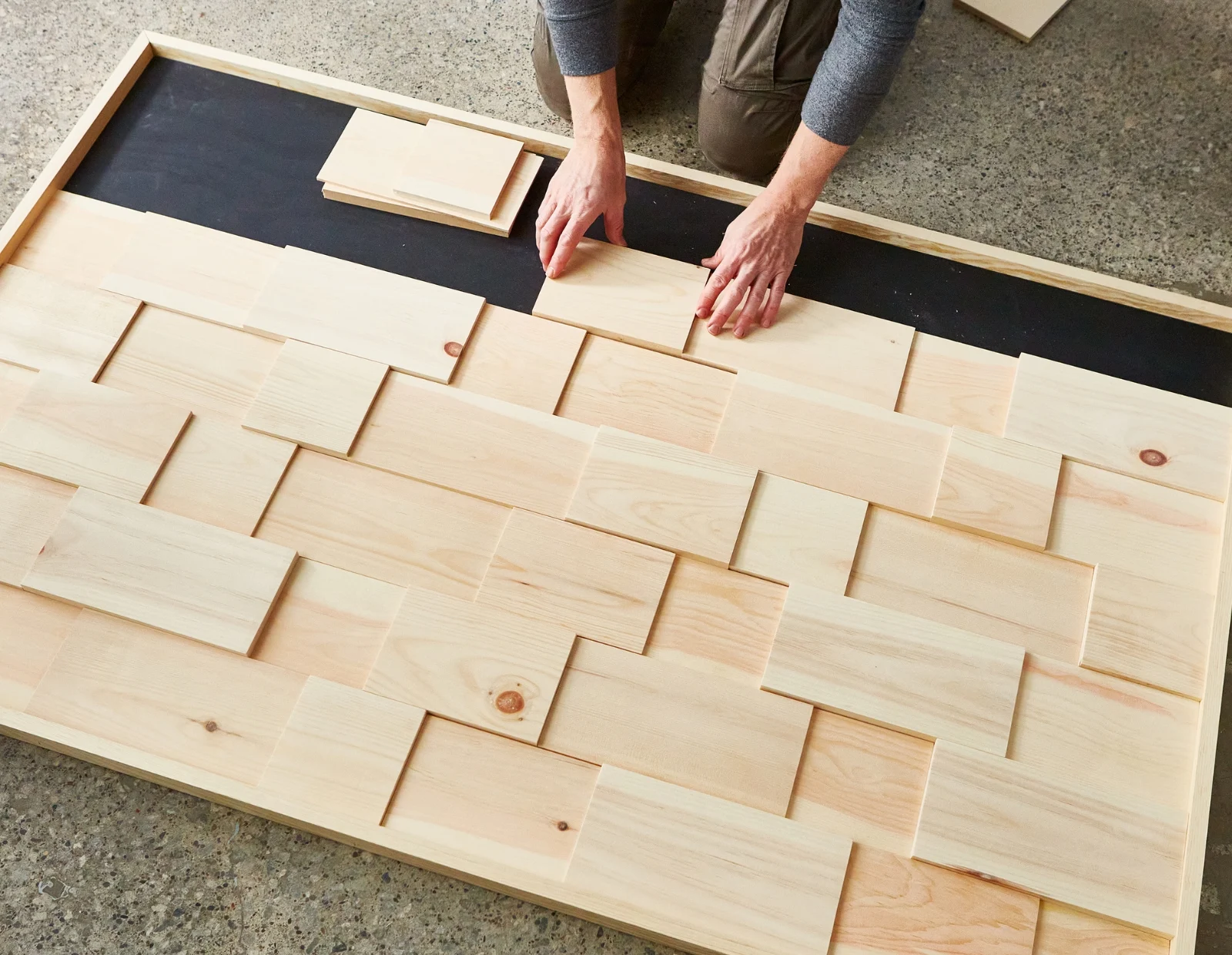

Step #6: Create the Mosaic Pattern

Now the fun part! Begin laying out your mosaic pattern on the plywood base within the frame. Mix lengths and thicknesses randomly, and periodically step back to ensure the design remains varied and visually appealing.


Step07

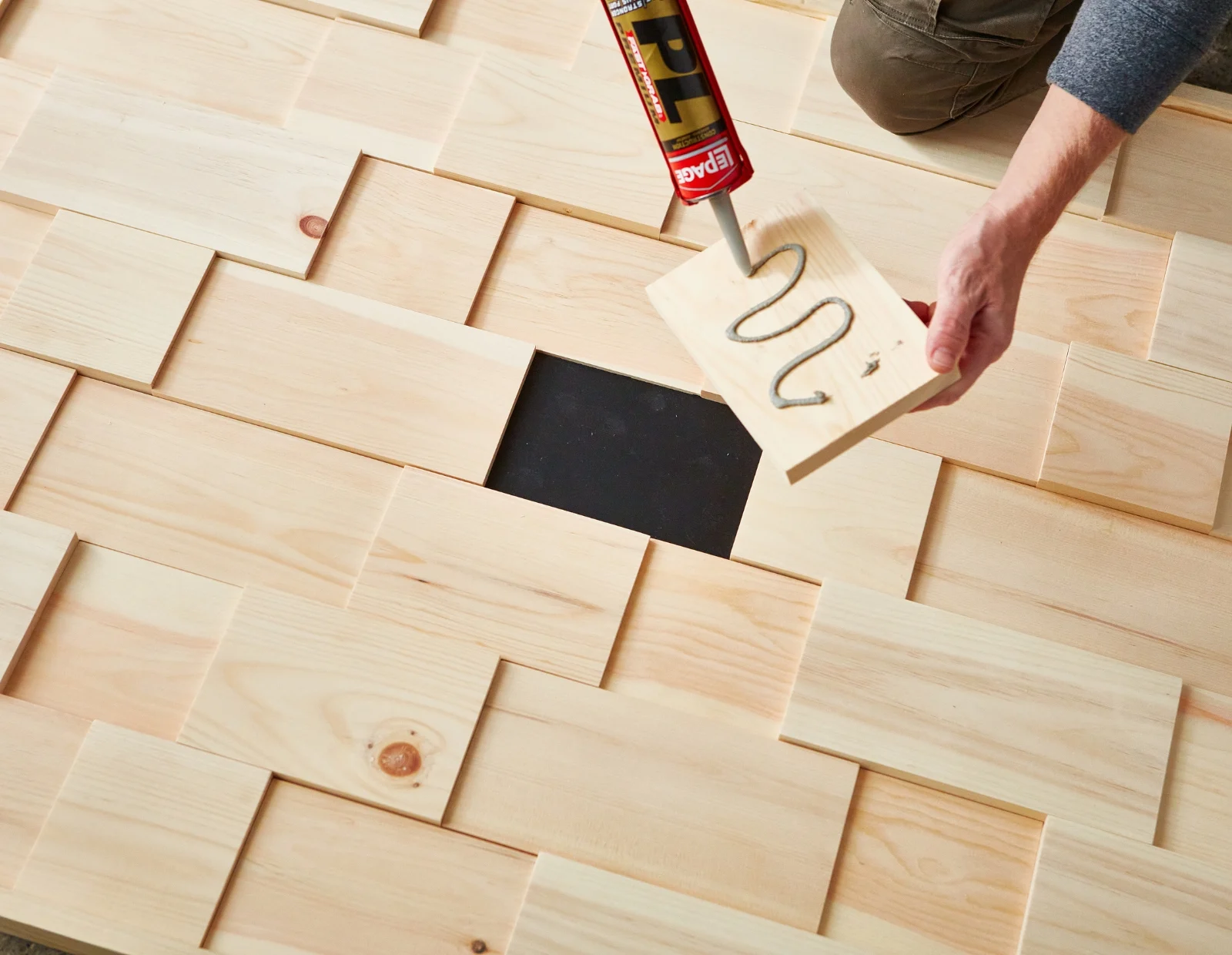

Step #7: Secure the Blocks

Once you're satisfied with the pattern, carefully remove each block and apply construction adhesive to the back. Press each block firmly back into place on the plywood base, ensuring good contact. Continue to glue each piece in place.

Caulking tiles icon


Step08

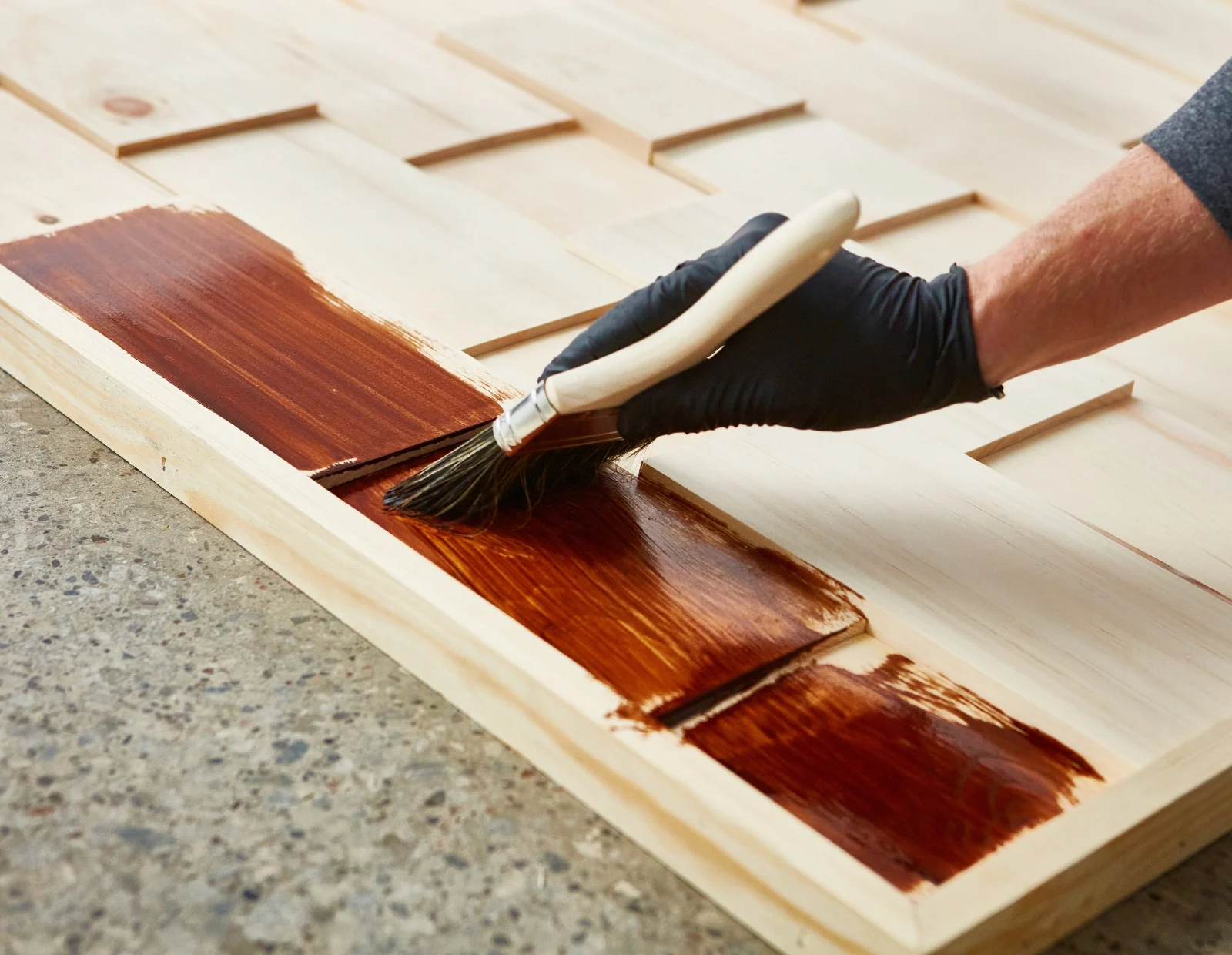

Step #8: Finishing Touches

Once all the pieces are secured let the glue cure before staining. Refer to the construction adhesive recommendations for curing time.

Select a stain colour of your choice. Stain the entire surface of the headboard with a staining brush. Apply 2 thin coats to even out the stain. Refer to the stain for recommendations on application and treatments.

can icon


Step09

Step #9: Installation

Once the stain is dry, it's time to hang your headboard on the wall. Be sure to choose a hanging system that can support the weight of your headboard and secure it firmly to the wall. Enlist the help of a friend to ensure its level and properly positioned on the wall.

Headboard Complete

By following these instructions, you can create a stunning wood block headboard that adds character and warmth to your bedroom space.
